Anti Uv 20mm Clear Cast Acrylic Sheet Sound Proof Board For Highway
Airport
DUKE Acrylic Sheet
Acrylic sheet is a special material. According to raw materials, it
can be divided into: pure new material, mixed material, and
recycled material; according to performance, it can be divided
into: ordinary acrylic and modified acrylic;according to process,it
can be divided into:cast acrylic sheeta and extruded acrylic sheet

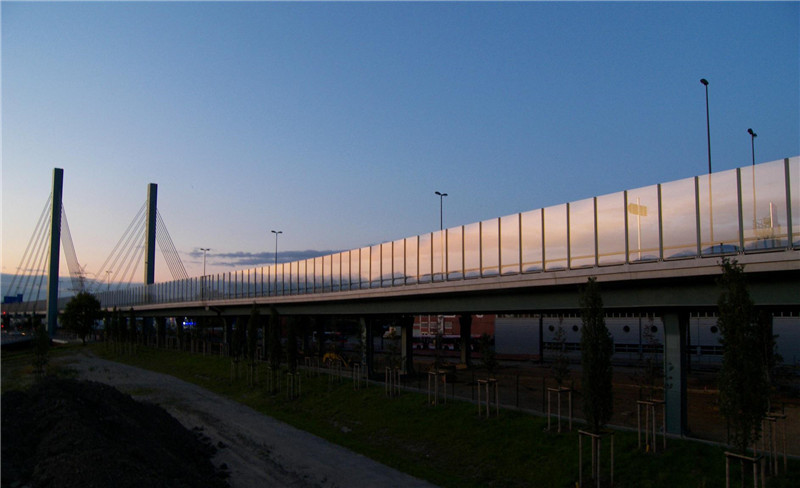

The DUKE series of acrylic sound screen panels for highways and
railways developed by CDA are modified acrylic panels produced by
Mitsubishi MMA. It has been successfully applied in the project
example. Among them, the DUKE reinforced acrylic acoustic panel has
a national design patent, and all indicators exceed or meet the
corresponding technical requirements.
Features
1, 100% Virgin Mitsubishi MMA
2, Up to 93% transparency
3, Light weight,weight is 50% of ordinary glass
4, Good sound insulation
3, High impact strength,good weather resistance
4, Good weather resistance
5, Rohs / Reach certificated by SGS
6, Various mold sizes and low MOQ
7, Qucik delivery time
Parameters Table
| Product Name | Cast noise barrieracrylic sheet |
| Material | 100% virgin Mitsubishi MMA |
| Item | Test Result | Item | Test Result |
| Transmittance% | 92% | Tensile Strain | ≥70 MPa |
| Modulus of Elasticity | ≥3100MPa | Specific Gravity | 1.19 |
| Vicat Softening Temperature | ≥110℃ | Rockwell Hardness(R) | 95 |
| Bending Strength | ≥98MPa | Elongation at Break | 4% |
| Water Absorption | 0.30% | Compressive Strength | 130MPa |
FAQ
Q1: Whether the raw material is brand new
A1: Because we have been a partner of Mitsubishi Rayon for many
years, we have promised to use only 100% pure new Mitsubishi MMA
Q2: Product tolerance
A2: The product adopts the world-class casting process, and we
control the tolerance within 0.2mm
Q3: Product impurities
A3: The whole workshop of the company has strict environmental
hygiene standards, multilayer special filter to eliminate the
possible incorporation of impurities . we will carry out strict
inspection for each batch of products, to ensure that the quality
of each batch is the same
Q4: Product color
A4: We have 60 colors to choose from. If you need to customize,
please specify in advance
Q5: MOQ
A5: MOQ: 2000 kg
Q6:Sample
A5:We can provide samples.
Chengdu Cast Acrylic Panel Co.,Ltd(CDA) is the wholly owned
subsidiary of Monarch Group relies on the industry-leading
technical support of Mitsubishi Rayon Co.,Ltd,CDA produced acrylic
sheet named Brand DUKE.CDA is a company intergrating
R&D,productio,manufacturing and sales and it is in absolute
leading position of the domestic PMMA industry.Product wild used in
sanitary,AD sign,aquarium board,noise barrier board,etc. Founded in
2007,covers an area of 52000 square meters,total investment of 120
million.Factory layout and facilities are all in accordance with
the world's leading standard,with two of the world advanced level
cast production lines,Annual capacity can reach to 10000 tons per
year.Using 100% pure new Mitsubishi MMA material ,English
Pilkington Mould and imported color paste to insure manufacture the
high qualitu carylic sheets.
